ELECTRIC FORKLIFT FB40N

The new electric forklfit FB40N will do everything a diesel can do… only better.

It is the first electric to fully overcome every issue that may have stopped some owners of IC engine trucks from making the switch to electric.

Electric forklfit is also equipped with AutoBoost for extra speed and power when you need it most. This kicks in automatically to provide torque and acceleration boosts where and when they’re needed, like on ramps and steep inclines, so power drops are a thing of the past. Even harsh environments are no match for electric forklift FB40N. Its Electric Differential Lock feature gives the truck better traction and control both indoors and out.

FB40N is an exceptionally intuitive forklift. Handling is smooth and precise, high lifts are rock-steady, while Four Wheel Steering enables a 100° lock delivering the smallest turning circle on the market – perfect for working in tight spaces.

For optimal handling, this forklift has dual joysticks that offer simultaneous lift and tilt functions, as well as Adaptive Lift Control (ALC) for added stability and little chassis movement when lowering loads.

This electric forklift FB40N benefits from revolutionary features designed to give operators greater control than ever before. Electric differential lock provides optimum traction, and Four Wheel Steering ensures better grip and precision handling. Truck is also equipped with AutoBoost for extra speed and power when you need it most.

Forklift data

Power source	electric
Battery voltage / capacity	80V / 775Ah
Load capacity	4000 kg
Wheels	SE (solid pneumatic)
Truck weight	7290 kg
Travel speed	20.0 km/h
Drive motor capacity / lift motor	2x16.0 kW / 34.0 kW
Max. lift height	7050 mm
Mast	duplex standard / triplex with free lift
Overall length	4170 mm

Za prenos tehničnega lista in kataloga
kliknite na ikoni

Features
Inquiry

Brakes
- - Sealed, wet-disc brakes
    Truck uses regenerative braking in normal driving, so mechanical brakes have a long life span and are virtually maintenance-free.
  - Automatic parking brake with hill hold
    The truck stops automatically when the accelerator is not engaged, preventing rolling on ramps. No need to remember to use a handle or switch.
  - Intelligent Cornering System
    The truck senses the angle of a turn and reduces speed early for maximum stability and accurate, positive cornering.
Drive
- - Sensitive Drive System (SDS)
    An intuitive driver-assist system for increased safety. Performance is managed according to steer angle and the velocity of foot and finger controls.
  - ECO mode
    This mode optimises energy efficiency and gives smoother performance. Ideal for long shifts, training, new users, and part-time users.
  - PRO mode
    This mode maximises performance parameters, giving full control to more experienced operators in intensive situations.
  - AutoBoost
    Acceleration and torque boost functions provide more power when needed, such as on ramps.
  - Electric differential lock
    When activated, both front wheels spin simultaneously, giving the truck better traction and control in slippery conditions.
Electrical and control systems
- - Emergency switch
    Weather-protected emergency switch stops the truck.
  - Sideways battery change
    Integrated sliding rollers offer quick and easy battery change for multishift operations. (Option)
Forks and mast
- - Mechanical side shift with rollers
    Side shifter minimises static friction and reduces sway for better control.
  - Adjustable lifting and lowering setting
    Through the multi-functional configuration software TruckTool, the lifting and lowering functions can be adjusted.
  - Adaptive Lift Control (ALC)
    Allows truck to remain stable with fewer movements when lowering loads from high heights.
  - Low Noise Lift
    Quietest hydraulic pump on the market contributes to low overall noise level (only 65dB).
  - Passive Sway Control
    Minimises mast sway, especially in high lifts above 3m.
Frame and body
- - Easy charging latch
    Small latch on the side of the truck allows charging cable to be connected without opening the battery door.
  - EasyAccess battery compartment
    Battery door can be opened 180 degrees for quick and easy battery checks, charging and changes.
  - Battery inspection hatch
    Operator seat can be tilted forward to give a quick and easy view of battery caps, so the battery does not need to be removed from the truck. (Option)
  - Clear cabin entry
    Panels are curved to give optimum space for operators when entering/exiting the truck.
  - Low overhead guard
    2220 mm high for use in and out of containers.
  - Bright working lights
    Lights on the mast structure illuminate the load and surrounding area for good visibility, without causing reflections on the cabin windows.
  - Strong, high-visibility mast
    Free-lift cylinder structure is optimised with hoses over chains for outstanding visibility.
Hydraulics
- - High lift traction control
    Truck senses high lifts over 2.5m and automatically adapts load handling for steadier chassis movement.
  - Load sensing hydraulic system
    Load handling functions react similarly to different load weights.
Operator compartment and controls
- - Spacious, open cabin
    The room means that operators of various sizes can benefit from a range of comfortable driving positions.
  - Comfortable cabin
    Rubber-mounted cabin reduces micro-vibrations and AC option allows operators to adjust temperatures, ensuring compete comfort throughout a shift. (Option)
  - Rear window
    Can be opened partially for ventilation or fully for emergency exit.
  - Four independently gliding windows
    Rear windows can glide to the front, this helps with situations such as accessing door controls while reversing.
  - Heater and/or Air Conditioner
    Operator can heat up or cool down the cabin as required. (Option)
  - Low windshield wiper motor
    Operator has a good view from the middle of the mast.

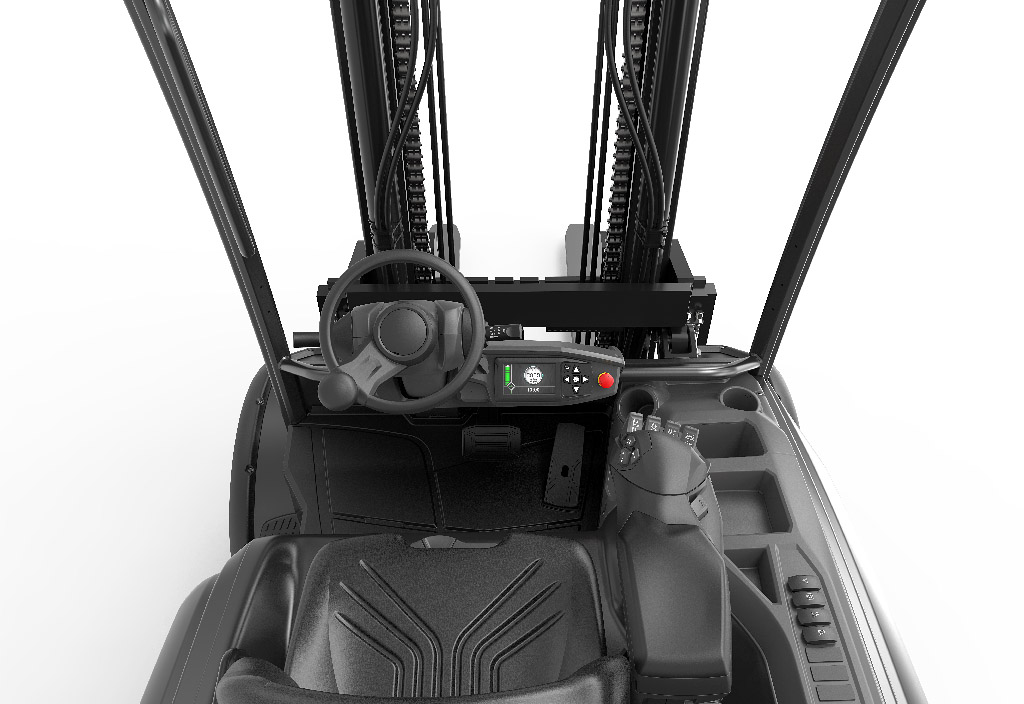

  - Unparalleled 360° visibility
    An optimised mast, wheel, dashboard and counterweight design maximises visibility to load, forks, front and rear wheels – giving safe, confident operation in tight spaces.
  - F2 button
    This simple thumb control integrates additional key controls without taking your eyes off the load. Options include clamp release and automatic tilt centring.
  - Clear, informative display
    Full colour and easy to read from all angles. even in direct sunlight. Perfectly positioned for at-a-glance reference, without reducing all-round visibility.
  - Touch-sensitive fingertip controls
    Controls have a natural-feeling, spring-loaded response: press gently for finer control.

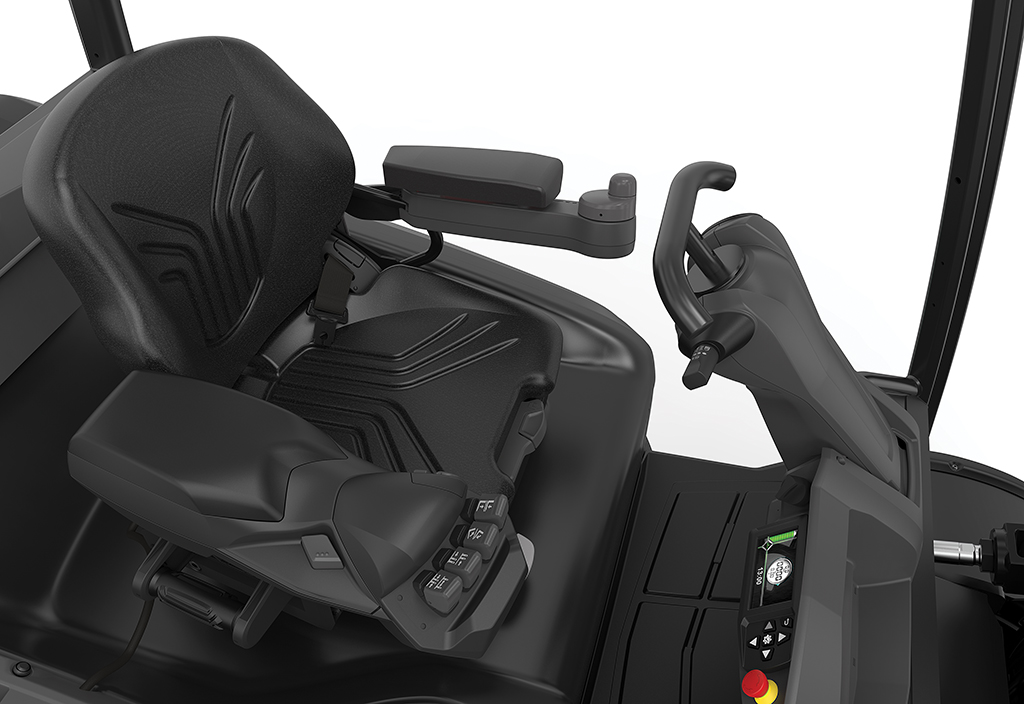

  - ErgoCentric adjustable armrest
    This allows for a natural hand position, minimising injury and fatigue. Can be easily adjusted with one hand.
  - Fully adjustable driving position
    Create the perfect seat, arm and steering wheel position for each operator’s unique needs.
  - Plenty of storage space
    Storage for on-board essentials, putting clipboard, mobile phone, drinks bottle and pen all easily to hand.
  - Extra-large low step
    Entry and exit is easy and safe, thanks to a high-grip surface.
  - Long handle bar
    Aids safer entry/exit.
  - Flat floor
    No obstructions and plenty of room for the operator.
  - Dashboard bar
    Easy to attach options such as monitors without blocking main display.
  - Narrow inclined dashboard
    This enhances the driver’s perception of surroundings – giving even greater visibility to the front and sides of the truck.
  - Dual joysticks
    Dual joysticks offer simultaneous functions for lift and tilt, and settings can be customised to customer requirements.
Steering systems
- - Four Wheel Steering (4WS)
    Front axle drive motors turn in separate directions for better grip and precise handling. The rear axle steers through a full 100°, with dual drive motors for instant, smooth turning on the spot and no initial ‘push’. This offers excellent manoeuvrability in tight spaces.
  - Perfectly weighted steering
    Optimal steering wheel size with a light but firm feel gives confidence and manoeuvrability at all speeds.
  - Mini Steering wheel
    Mini steering wheel allows operators to maintain a relaxed driving position and better view, ideal for longer shifts. (Option)
  - Variable steering ratio
    Precision steering at high speeds with no need for overcorrections
