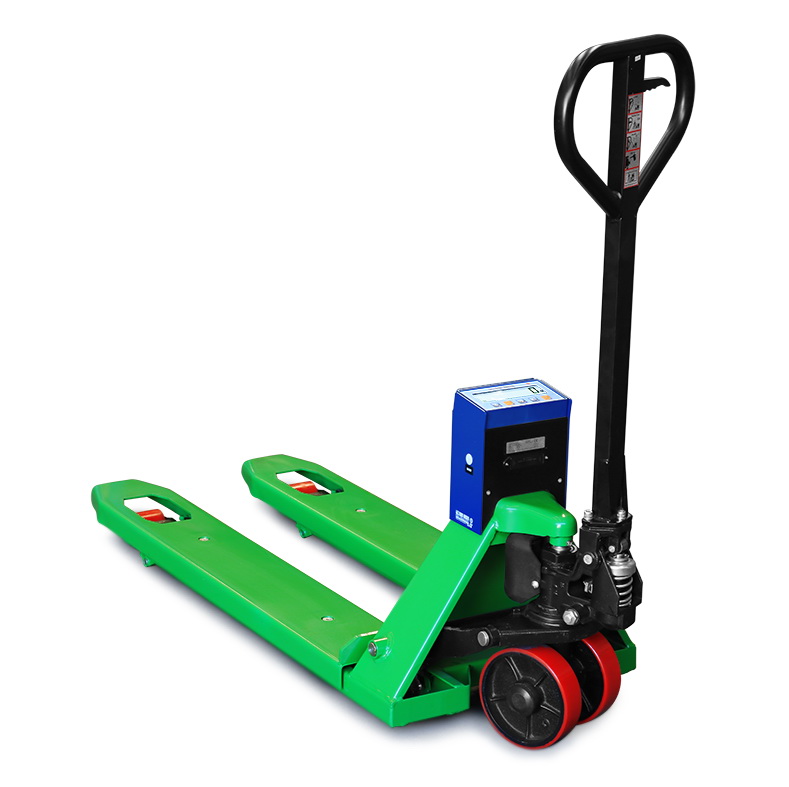

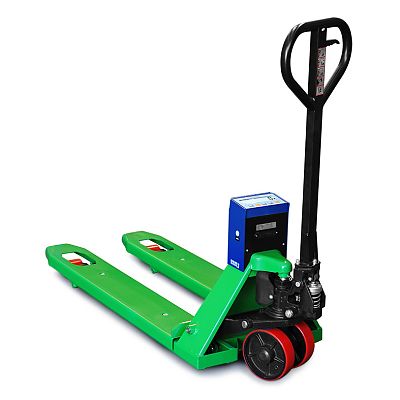

ELECTRIC PALLET TRUCK SCALE TPWN09

The Dini Argeo electric pallet truck scale TPWN09 pallet truck weigher. Maximum precision is guaranteed from the four shear-beam load cells and multifuntional weight indicator. Structure in extra thick steel and oven-fire painted mechanics.

Steering wheels and double loading rollers with a polyurethane coating. The display has large backlit 25mm digits and can be read in any lighting conditions. Power is from 4 x AA batteries (or rechargeable ones) giving 40 hours of continuous use or one month of typical use.

Accuracy: +/- 0.5% of the maximum capacity.

Forklift data

Load Capacity	2000 kg
Lift Height	180 mm
Tyres, drive side	vulkollan tandem
Tyres, load side	vulkollan
Overall Length	/ mm
Overall Width	680 mm
Truck Weight	110 kg
Fork Dimensions	87 x 550 x 1150 mm
Warranty	24 months

Features
Inquiry

Forks
- - Fork dimensions: 1150 x 550 x 85 mm.
Wheels
- - Steering wheels and double loading rollers with a polyurethane coating.
Weight indicator
- - Weight indicator with 6 x 25mm digits on a backlit LCD display, which are clearly visible even in poor lighting conditions, and waterproof keyboard, with 5 functional keys.
  - Configuration, calibration and diagnostics from keyboard or PC with DINITOOLS.
Battery
- - Power supply through 4 AA batteries, which may also be rechargeable.
  - The operating time is of about 40 hours of continuous use, or one month with the typical non continuous use, thanks to its auto switch-off function.
  - Programmable auto power saving function.
  - Battery level indication.
