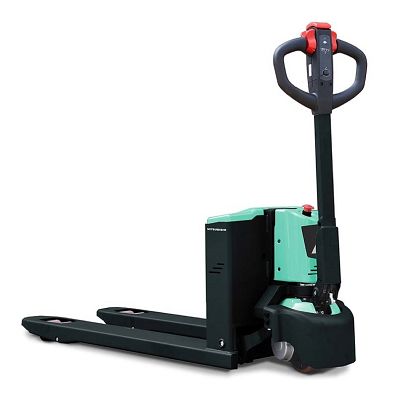

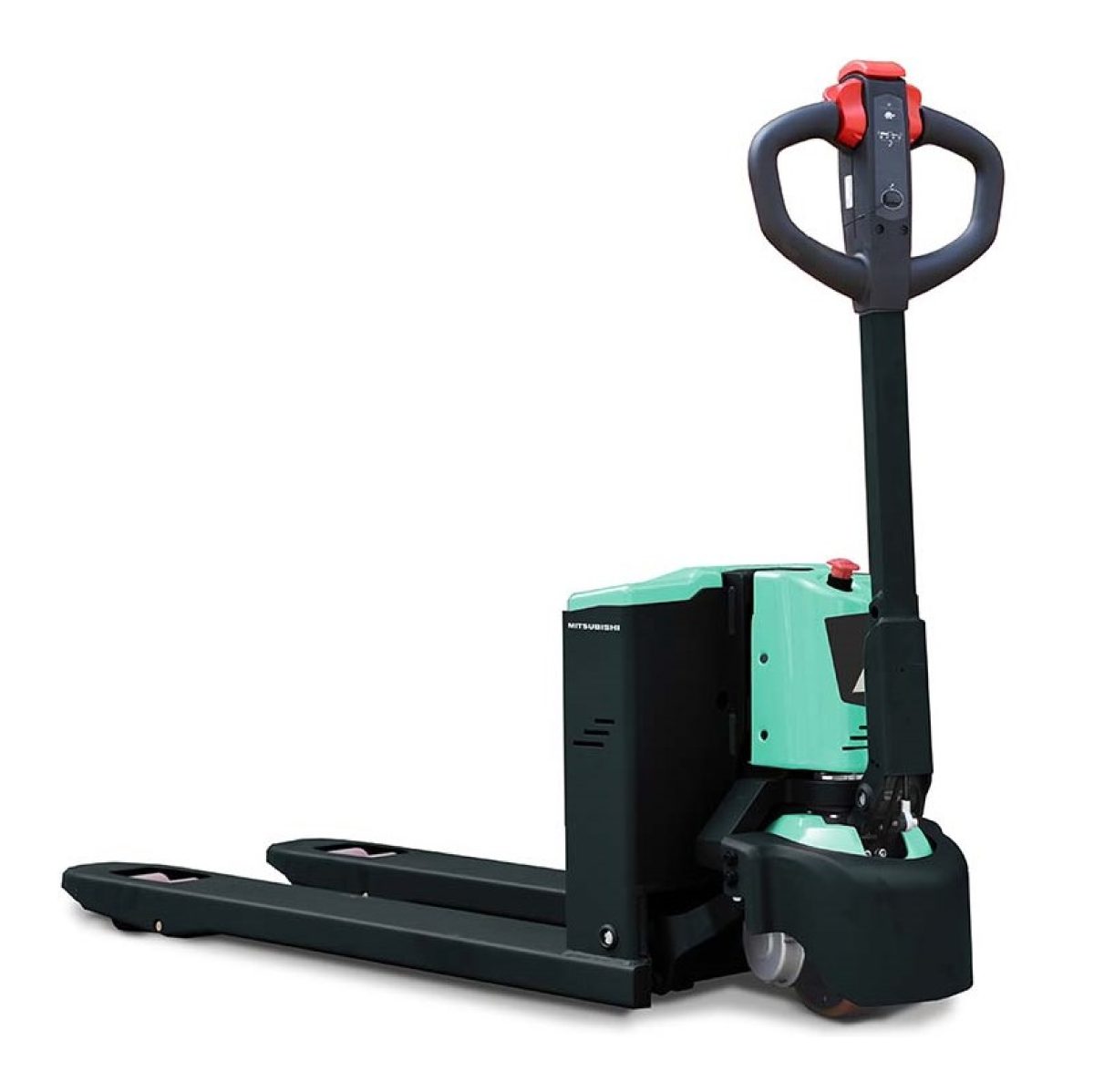

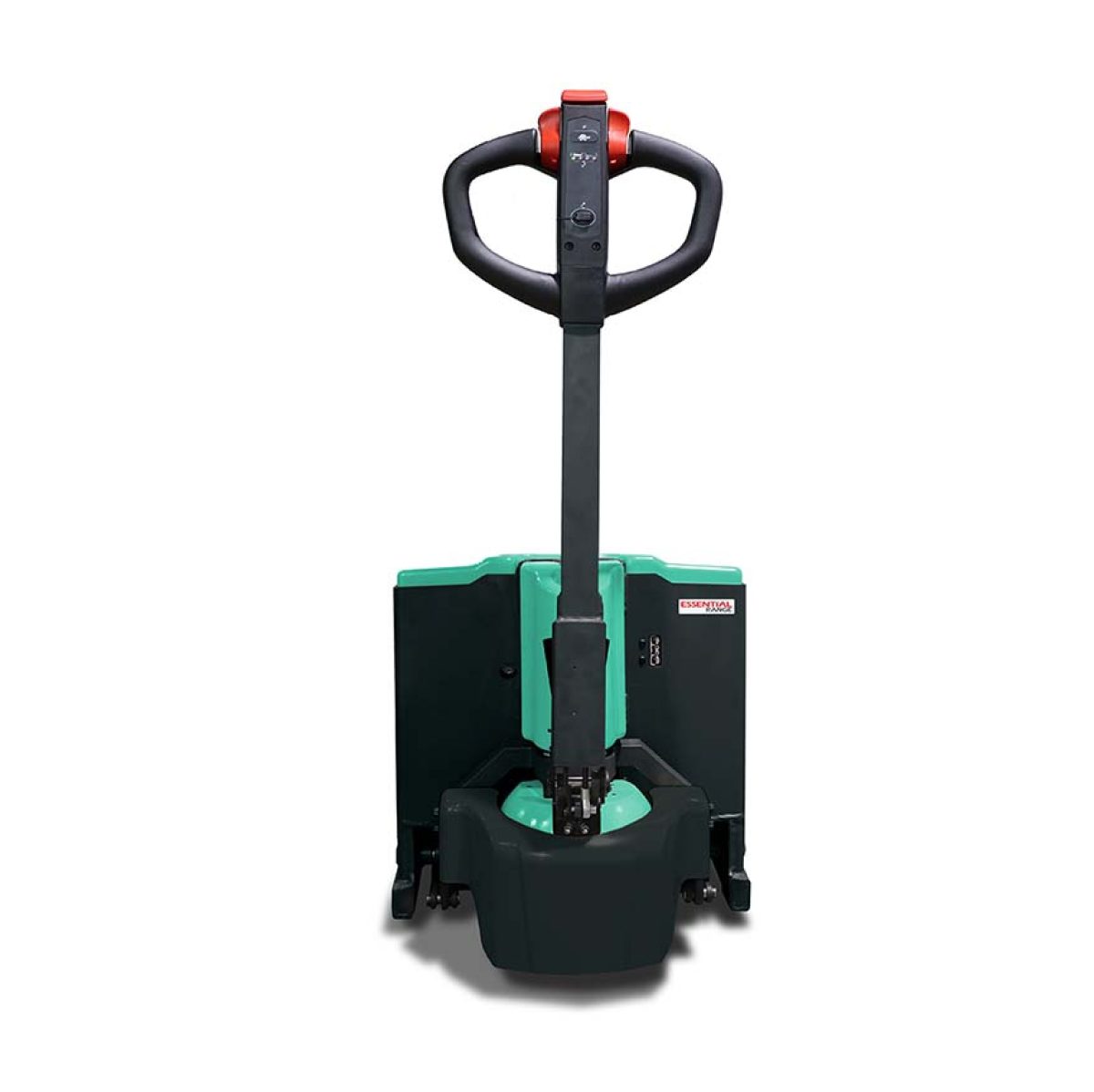

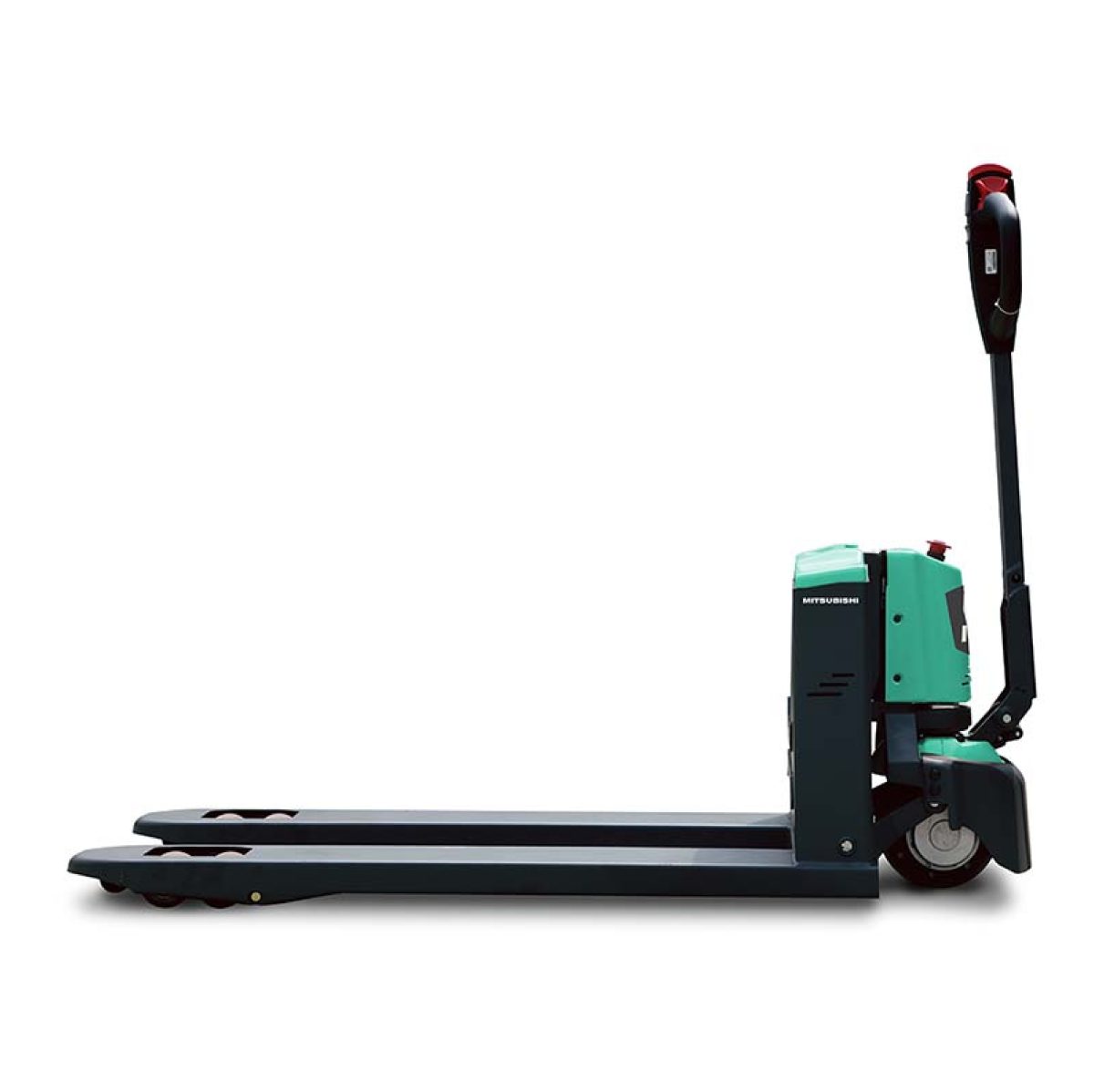

PEDESTRIAN POWER PALLET TRUCK PBP15QBL

Pedestrian power pallet truck PBP15QBL is a combination of a manual and electric pallet truck designed for unloading trucks.

An economical price for the pedestrian power pallet truck-pbp15qbl range doesn’t mean that there should be any need to compromise on quality or performance. The tough construction of PBP15-20Q(B)(L)(E) & PBV20QL Series models mean they’re built to last for years with minimal servicing requirements, but can make a big difference to productivity and efficiency in the warehouse.

Forklift data

Load capacity	1500 kg
Lift height	190 mm
Tyres, drive side	Polyurethane
Tyres, load side	Polyurethane
Overall length	1545 mm
Overall width	550 mm
Truck weight	135 kg
Fork dimensions	70 x 160 x 1150 mm
Turning radius	1345 mm

Za prenos tehničnega lista in kataloga
kliknite na ikoni

Features
Inquiry

Brakes
- - Electromagnetic braking system 1) 2) 6)
  - Smooth, steady deceleration and prolonged life of brakes.
  - • Parking brake Automatically stops on gradients and ramps
  - • High-efficiency regenerative braking 6) This gives more effective control and reduces brake wear. Kinetic energy from braking charges the battery.
Drive
- - Powerful AC drive motor Excellent traction, smooth, quiet, controlled operation, extended shift length and lower maintenance requirements
  - TractionPlus 2) Suspension system works to continuously increase pressure of the drive wheel. This ensures optimum traction on wet surfaces for better productivity and minimal risk of accidents
Electrical and control systems
- - High performance Curtis motor drive controller 1) 2) This delivers excellent traction control.
  - Battery Discharge Indicator with hour meter 1) 2) 4) Fitted as standard for battery protection and preventing deep dischargeij.
  - Li-ion battery Fast opportune charging removes the need for extra batteries and allows 24/7 operation. (Option)
  - External charger It’s possible to charge the battery onboard.
  - Sideways battery exchange 1) 2) 3) Battery can be changed out in 10 seconds without the need for additional tools
Forks and mast
- - Easy-to-adjust fork leverage 1) Forks can be adjusted via conveniently located bolts.
  - High-strength tapered forks 1) 2) Constructed from 6mm manganese steel, tapering makes access to pallets in racks or block stacks is easier, quicker, and safer.
  - Skid runner welded to the forks 1) 2) Maintenance-free and provides easy entry and exit to a pallet (Option)

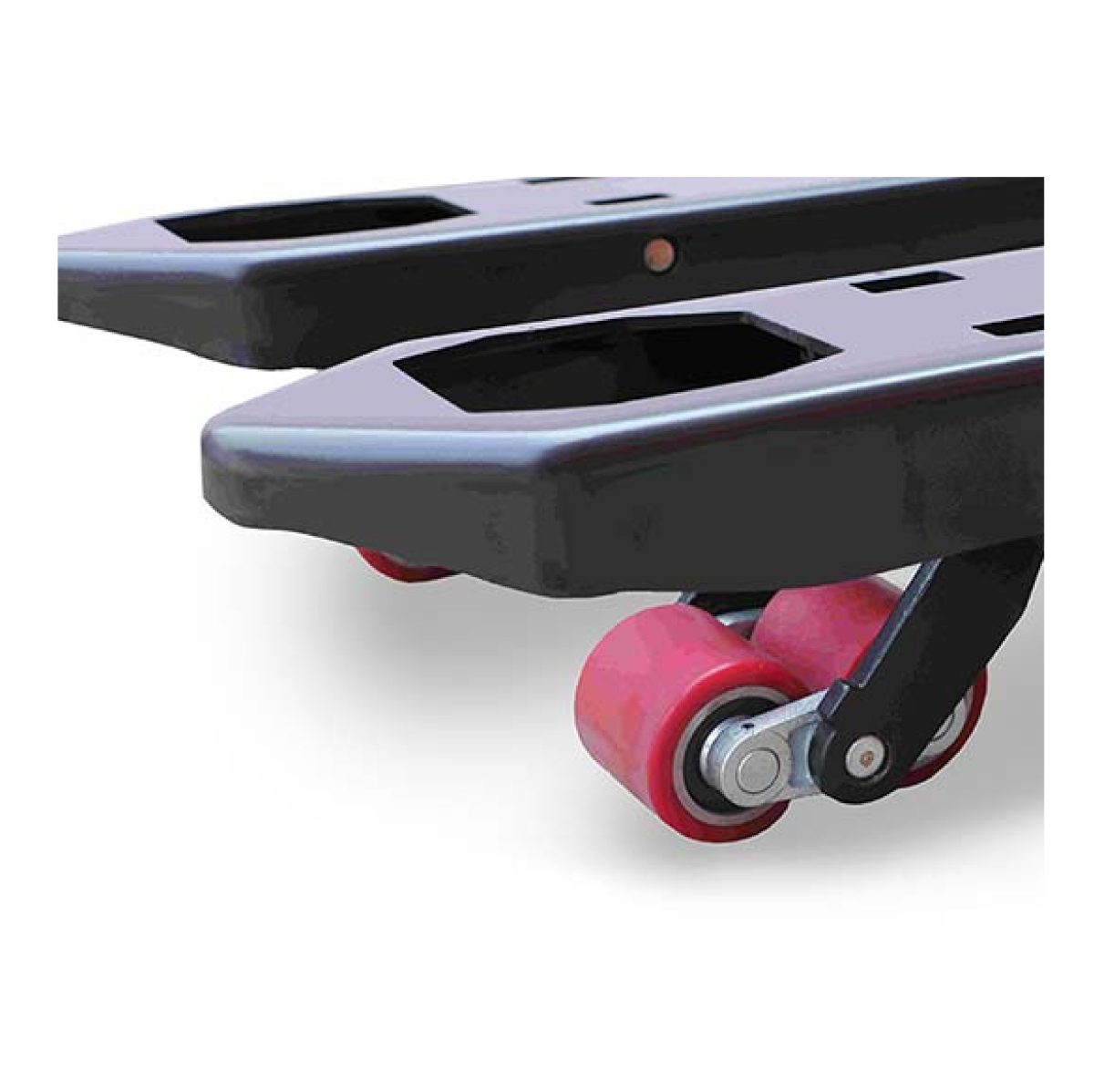

  - Pallet entry and exit rollers 1) 2) 6) Provides extra easy entry and exit to a pallet (Option))
Frame and body
- - Tough construction Truck has been designed and rigorously tested to ensure high stability, rigidity, and protection.
  - Compact design and tight turning radius 2) 3) Works well in small aisles and narrow spaces.
  - Large diameter plunger cylinder 3) Low hydraulic system pressure, provides low failure rate and long service life.
Operator compartment and controls
- - Easy-to-operate long tiller arm 1) 2) 3) Features an ergonomic tiller head with simple controls. Long arm helps to keep the load at a safe distance from the operator to reduce accidents.
  - Creep speed function and tiller-up drive 1) 2) 3) Both help to maximise safety and control in confined spaces.
  - Emergency reverse safety switch 1) 2) 4) Button on the end of the tiller head immediately reverses the truck a short way to prevent the operator getting trapped.
  - Multi-function control tiller head Combines the functions of lifting, lowering, forward, backwards, emergency reverse, electric lock, and an information display.
  - PIN code access 1) 2) 5) Stops unauthorised truck use and keeps you aware of who’s operating at all times.
